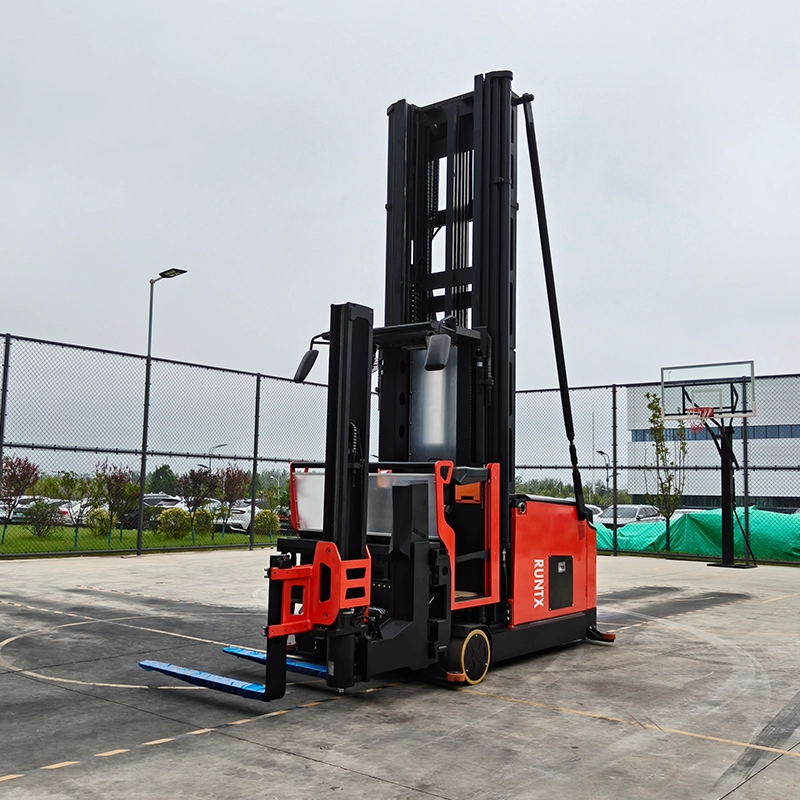

1.6 Ton Man-up 3-Way Reach Truck (VNA Tri-lateral Stacker) 80V – CDDMX16
- Capacity: 1.6 Ton
- Operation Type: Stand-on type
- OEM & ODM: Available (Custom color, branding & wheel materials)
- Support: 24/7 Online Customer Support
- Payment: T/T (30% deposit, 70% before shipment)
About CDDMX16 Series 1.6 Ton 80V Man-up 3-Way Reach Truck (VNA Tri-lateral Stacker)
Our RUNTX CDDMX16 is a top-tier 80V man-up VNA truck specifically engineered for extreme high-level storage and order picking in Very Narrow Aisles (VNA). Functioning as an advanced VNA tri-lateral stacker, it features an elevating operator cabin that rises simultaneously with the 180-degree rotating forks, allowing for pinpoint accuracy at astonishing lift heights up to 14.5 meters. With a 1600kg load capacity and an operating aisle requirement of only 1700mm, the CDDMX16 series represents the pinnacle of modern warehousing, enabling facilities to achieve maximum vertical density and unparalleled picking efficiency.
Key Advantages
Extreme High-Level VNA Performance
- 14.5m Lifting Height: Powered by a massive 21 kW AC lift motor, ensuring smooth, rapid (0.32 m/s), and ultra-stable vertical stacking at extreme heights up to 14,500mm.
- Tri-lateral Rotating Forks: Operating as a high-end 3-way forklift, the fork carriage rotates front, left, and right, enabling deep rack storage without repositioning the massive chassis.
- Heavy-Duty 80V System: Driven by an industrial-grade 80V / 600Ah lead-acid battery and a 10 kW AC drive motor to easily sustain continuous high-throughput operations.
Man-up Ergonomics & Supreme Stability
- Elevating Operator Cabin (Man-up): The operator rises with the load, ensuring 100% direct visibility for precise pallet placement and allowing for individual carton order picking at the highest rack levels.
- Unmatched Structural Stability: Boasts a colossal 11,670 kg service weight and an ultra-low center of gravity, guaranteeing absolute safety and minimal mast sway at 14.5m elevations.
- Intelligent VNA Navigation: Optimized for 1700mm narrow aisles and compatible with standard 180mm channel guide rails for perfectly aligned, high-speed travel inside racking tunnels.
Application Scenarios
The RUNTX CDDMX16 Man-up Tri-lateral Stacker is the ultimate solution for extreme high-density warehousing. It is exclusively deployed in mega-distribution centers, high-bay automated logistics hubs, e-commerce fulfillment centers, and intensive automotive parts warehouses. By elevating the operator to the racking level and operating in aisles as narrow as 1.7 meters, businesses can seamlessly blend full-pallet storage with high-level order picking, effectively transforming vertical air space into profitable storage real estate.
Technical Specifications
| Model / Parameter | CDDMX16 |
|---|---|
| Load Capacity (kg) | 1600 |
| Load Center (mm) | 600 |
| Operation Type | Electric / Man-up (Cabin Elevates) |
| Max. Lifting Height (mm) | 14500 |
| Free Lift (Auxiliary Mast) (mm) | 1500 |
| Height of Mast Lowered (mm) | 5950 |
| Height, Mast Extended (mm) | 15600 |
| Height of Overhead Guards (mm) | 2580 |
| Height of Standing Board (Above Ground) (mm) | 485 |
| Fork Size (T x W x L) (mm) | 50 x 125 x 1200 |
| Fork Outer Width (Customizable) (mm) | 260 – 725 |
| Overall Length (mm) | 4015 |
| Overall Width (mm) | 1560 |
| Distance: Rotating Center to Front Wheel Center (mm) | 1095 |
| Min. Turning Radius (mm) | 2600 |
| Aisle Width (for 1200×1200 Pallet) (mm) | 1700 |
| Main Aisle Width (mm) | 4465 + 400 |
| Guide Rail Height (mm) | 180 |
| Min. Ground Clearance (mm) | 90 |
| Travel Speed (Unladen / Laden) (km/h) | 10 / 9 |
| Lifting Speed (Unladen / Laden) (m/s) | 0.32 / 0.32 |
| Lowering Speed (Unladen / Laden) (m/s) | 0.38 / 0.40 |
| Max. Gradeability (Unladen / Laden) (%) | ≤ 8 |
| Wheelbase (mm) | 2230 |
| Wheel Type | Polyurethane (PU) |
| Front Wheel / Driving Wheel Size (mm) | Φ380×192 / Φ406×170 |
| Service Brake | Electromagnetic |
| Drive Control Type | AC (交流) |
| Drive Motor Power (kW) | 10 |
| Lift Motor Power (kW) | 21 |
| Steering Motor Power (kW) | 1.5 |
| Battery Type & Voltage/Capacity | Lead-Acid Battery, 80V / 600Ah |
| Charger | 80V / 80A |
| Service Weight (with Battery) (kg) | 11670 |
