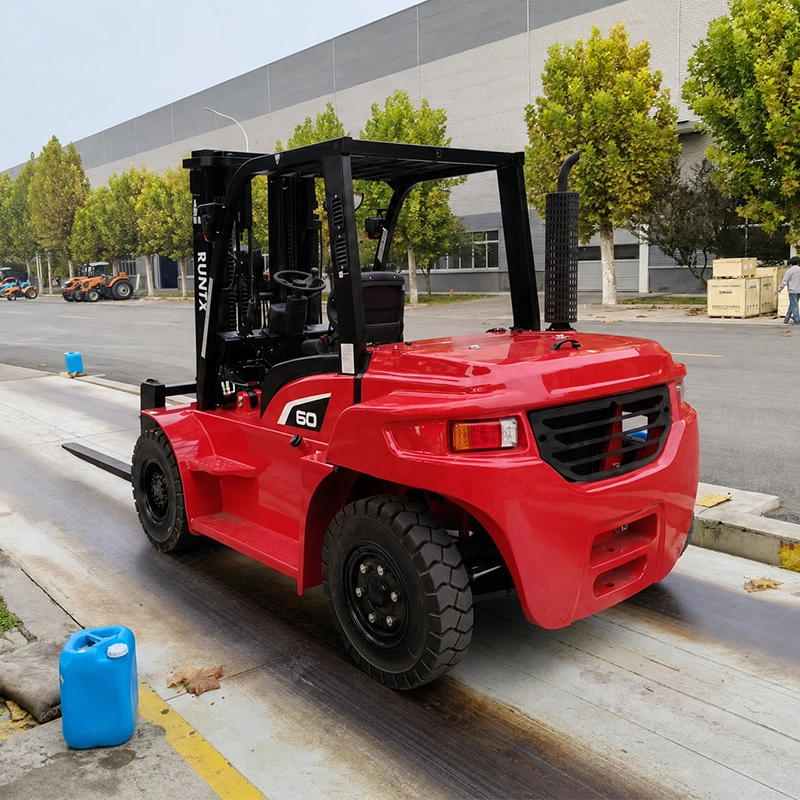

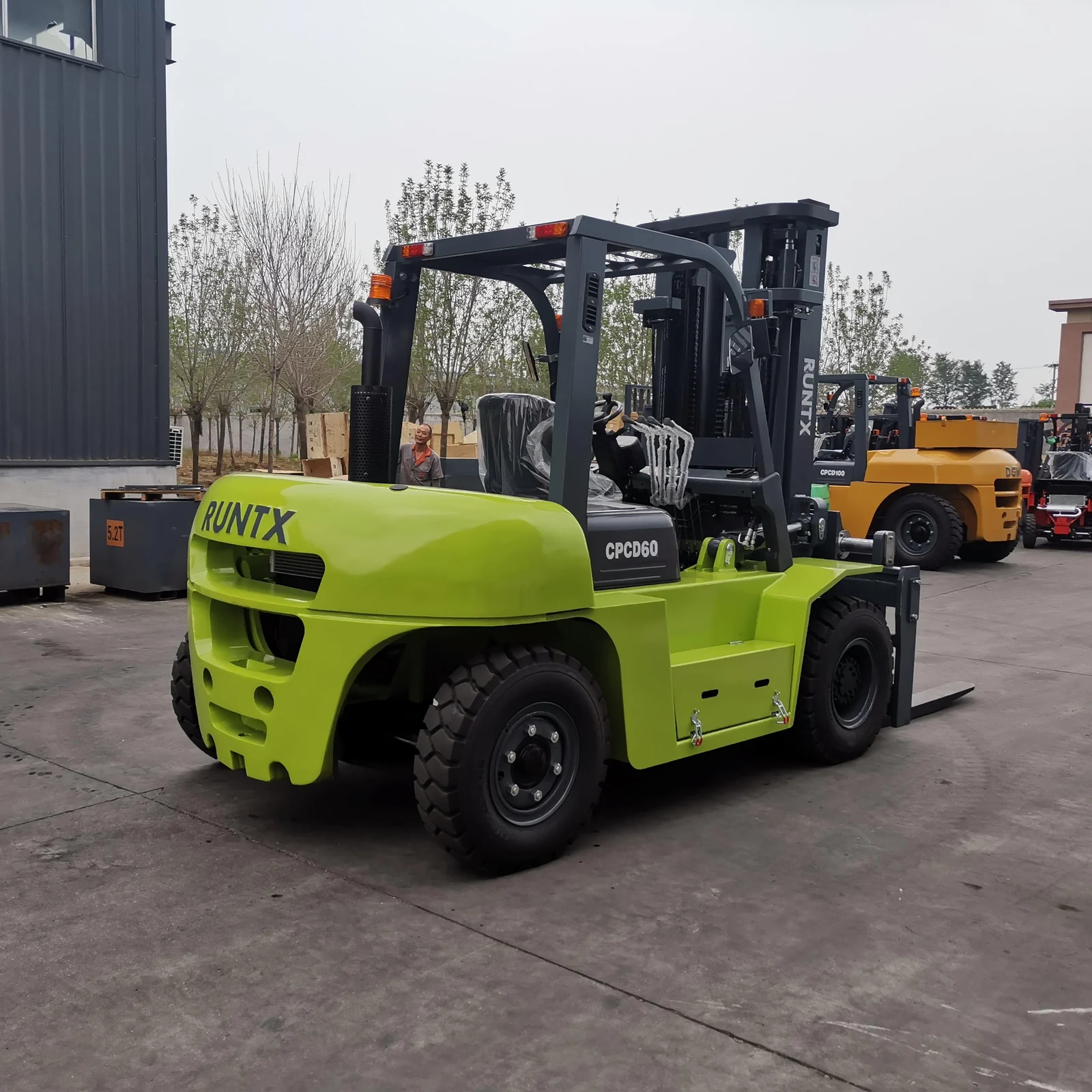

6 Ton Diesel Forklift – CPCD60

About the 6 Ton Diesel Forklift – CPCD60

The RUNTX CPCD60 6 ton diesel forklift is a heavy-duty counterbalance forklift designed for handling loads up to 6,000 kg at a 600 mm load center. It is suitable for material handling in manufacturing plants, logistics yards, construction material facilities, machinery workshops, ports, warehouses, and other industrial environments where larger and heavier loads need to be moved regularly.

With a 2,250 mm wheelbase, 1,970 mm overall width, and a minimum outside turning radius of 4,110 mm, the CPCD60 is configured for stable handling of heavier cargo while maintaining practical maneuverability for loading, unloading, transport, and yard operations.

The forklift is powered by a Quanchai 4J1-115C32 diesel engine and has a standard lifting height of 3,000 mm. A 230 mm minimum ground clearance, pneumatic tires, and a 160 L fuel tank support regular operation in industrial yards and other demanding material handling environments.

Key Features of the CPCD60 Diesel Forklift

• 6,000 kg Rated Load Capacity:
  The CPCD60 is designed to handle loads up to 6 tons at a 600 mm load center, making it suitable for machinery components, construction materials, steel products, industrial equipment, large pallets, and other heavy cargo.
• Quanchai Diesel Engine:
  The forklift is equipped with a Quanchai 4J1-115C32 diesel engine, providing a conventional diesel power system for heavy-duty industrial handling and outdoor operations.
• 3,000 mm Standard Lifting Height:
  The specified maximum lifting height is 3,000 mm, covering common truck loading, pallet stacking, machinery handling, and industrial lifting applications.
• Heavy-Load Lifting Performance:
  Maximum lifting speed is specified at 530 mm/s without load and 500 mm/s with full load, supporting repeated loading and lifting cycles in industrial operations.
• Up to 29 km/h Travel Speed:
  The CPCD60 has a specified maximum travel speed of 29 km/h without load and 24 km/h with full load, allowing efficient movement between production areas, storage zones, and loading points.
• 230 mm Ground Clearance:
  A minimum ground clearance of 230 mm provides additional clearance for operation on typical industrial yards and outdoor working surfaces.
• Heavy-Duty Pneumatic Tire Configuration:
  The CPCD60 uses 8.25-15 NHS pneumatic tires at both the front and rear, with a four-front and two-rear wheel arrangement to support its higher load capacity.
• Industrial Counterbalance Layout:
  A 2,250 mm wheelbase, 6°/12° mast tilt angles, and a 4,110 mm minimum turning radius provide a practical configuration for handling heavier loads in factories, logistics facilities, equipment yards, and other industrial applications.

Compatible Forklift Attachments

The CPCD60 6 ton diesel forklift can be configured with different attachments according to the cargo type, load dimensions, working environment, and material handling requirements. Attachment selection should consider the rated capacity, 600 mm load center, residual lifting capacity, mast configuration, and hydraulic requirements.

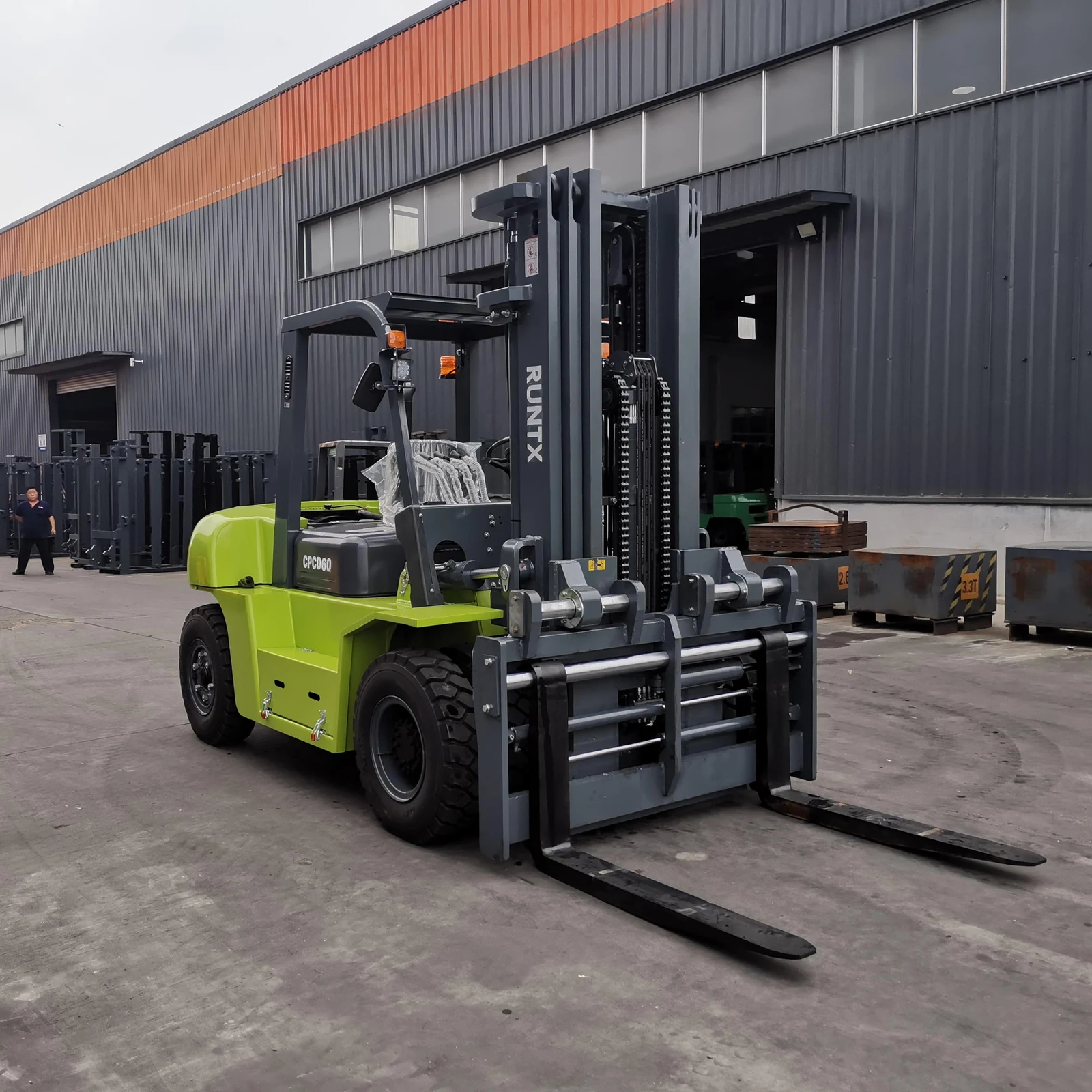

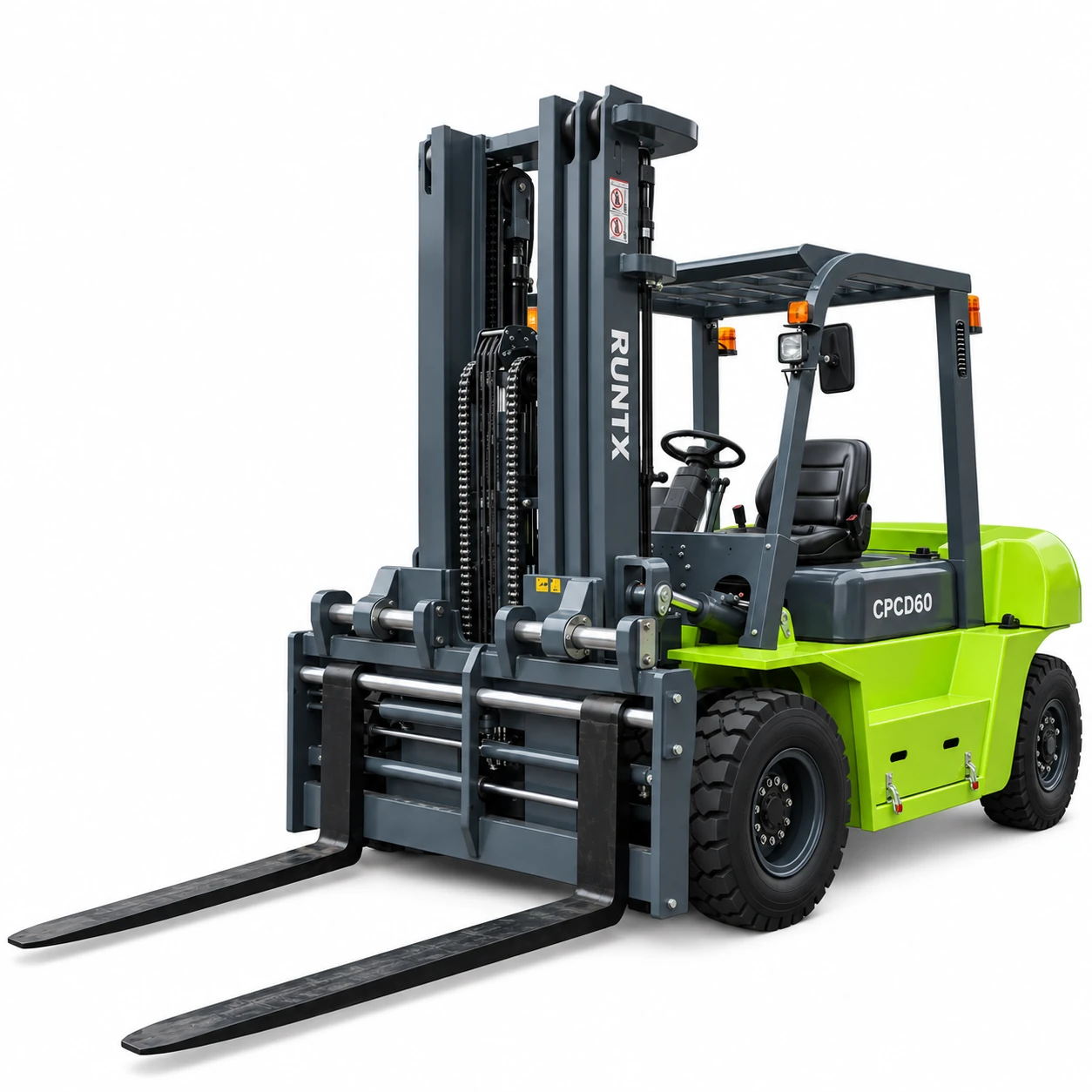

Common options include side shifters, fork positioners, rotators, bale clamps, paper roll clamps, block clamps, fork clamps, and other specialized material handling attachments. Fork positioners and side shifters can simplify load alignment, while clamps and rotators can support specialized cargo in manufacturing, recycling, paper, building materials, logistics, and heavy industrial applications.

Attachments can change the effective load center and reduce the residual lifting capacity of the forklift. The cargo weight, dimensions, attachment type, and required lifting height should therefore be confirmed before production.
